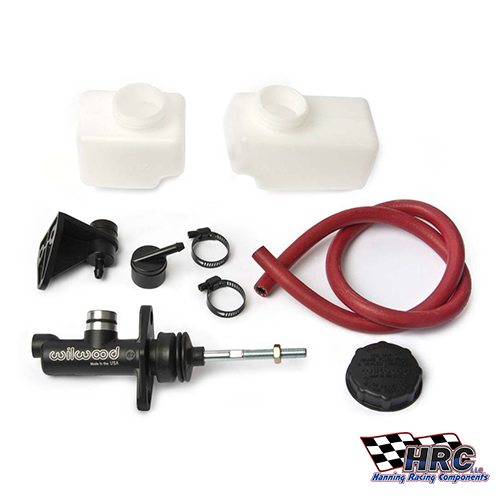

Wilwood 5/8″ Short Body Master Cylinder Kit



Short Body Wilwood Master Cylinders provide excellent braking power in a short, lightweight body design.

-Lightweight design
– Aluminum cylinder: black e-coated for wear and corrosion resistance
– A full 1.12″ of piston stroke meets or exceeds the stroke capacity of most full size cylinders
– Return spring: new design eliminates the potential for coil bind and spring damage at full stroke
– Flange type mount
– Outlet ports: 1/8″ NPT, no need to re-thread this unit
– Cylinder weight: .63 lbs (depend on bore size)
– Body length: 3.37″ (mounting flange-to-outlet port)
– Bore size: 5/8″
-Includes small reservoir (7 oz) and large reservoir (10 oz)
-5/16″-24 thread for rod end

Additional information

Weight 1.8 lbs
Dimensions 6 × 3 × 3 in
